Understanding Types and Classes of Hard Hats: What You Need to Know

Hard hats are essential for protecting one of the most important parts of the human body, your head. But did you know that not all hard hats are created equal? There are several types of hard hats and different hard hat classes, each designed to address specific hazards. It’s important to make sure you’re using the right hard hat for the job.

ANSI Types of Hard Hats – Understanding the Difference

ANSI sorts the types of hard hats into two groups, based on the area of the head they protect.

• Type I

  Designed to reduce the force of impact from a blow only to the top of the head. This is the most common type in North America and is typically used in general industry. Type I hard hats may feature either a front-only brim (cap style) or a full brim.

• Type II

  Designed to reduce impact force from top and lateral (side, front, and back) blows. These are tested for off-center impact and penetration resistance, as well as chin strap retention. Type II hard hats are more common in high-risk environments like construction, but less prevalent in general industry.

ANSI Classes of Hard Hats

In addition to impact protection, hard hat classes are defined by the level of electrical protection they provide. Each class is proof tested at a set voltage, which is why you will see the letter E, G or C printed inside the shell.

• Class E (Electrical):

  Designed to withstand up to 20,000 volts of electrical shock, based on a three minute proof test at that voltage with strict limits on current leakage. Ideal for electrical workers or environments with high-voltage exposure.

• Class G (General):

  Rated for protection against up to 2,200 volts, proof tested at that level for one minute. Suitable for general industry use where limited electrical exposure may occur.

• Class C (Conductive) :

  No electrical protection. These hard hats prioritise ventilation or lightweight design but should not be used near electrical hazards. Most vented shells and many aluminium hats fall into this group.

You may still see Class A and Class B on older hats or supplier spec sheets. Those are the former names for Class G and Class E, retired when ANSI updated the standard in 1997.

How Hard Hat Types and Classes Work Together

Every hard hat carries one type and one class at the same time. A Type I Class E hat, for example, protects against blows to the top of the head and is rated for high voltage exposure. Reading the hard hat classifications correctly starts with the label inside the shell, which should show

• Manufacturer name and date of manufacture, so you can track the age of the shell.
• ANSI sorts the types of hard hats into two groups, based on the area of the head they protect.
• Type and class, such as Type II Class G.
• Head size range for the suspension.
• Optional markings, including LT for use down to −30°C (−22°F), HT for use up to 60°C (140°F), HV for high visibility, and a reverse arrow symbol if the hat can be worn backward.

If any of these are missing or worn off, treat the hat as unverified and take it out of service.

Which Hard Hat Class Fits Your Job?

The right choice comes from your workplace hazard assessment, not from habit. Here is how the hard hat classes usually line up with real job sites.

• Class E suits utility line crews, electricians, and anyone working near energized equipment or overhead lines.
• Class G covers most construction, manufacturing, warehousing, and maintenance work where contact with low voltage is possible but not expected.
• Class C works for hot outdoor jobs with zero electrical exposure, where a vented shell keeps workers cooler.

The types of hard hats matter here too. Crews on scaffolds, in trenches, or around swinging loads often step up to Type II, since side and off-center hits are a real risk there.

Materials & Suspension Systems

Most modern hard hats are made from high-density polyethylene (HDPE) or other non-conductive materials. They include an internal suspension system designed to absorb and distribute impact.

Suspension options include:

• 4-, 6-, or 8-point suspensions, referring to the number of contact points with the shell.
• Pinlock adjustment, which requires removing the hat to adjust sizing.
• Ratchet adjustment, allowing quick and easy size changes while wearing the hard hat.

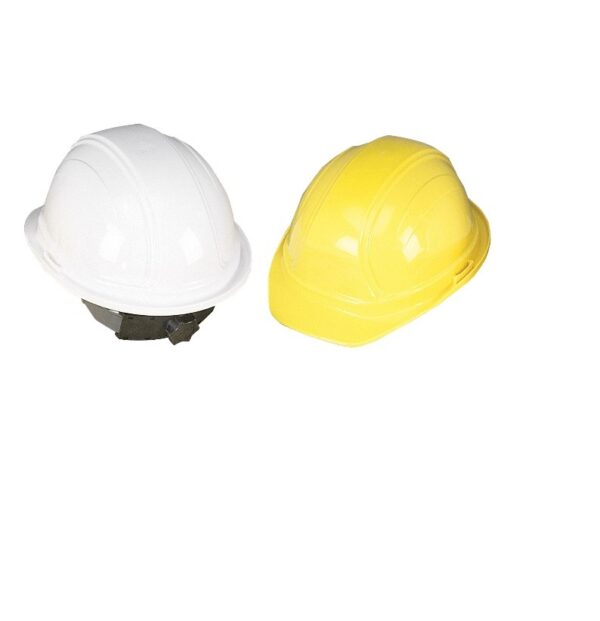

Hard Hat Styles

There are two common styles of hard hats, designed for different job site needs and preferences. Style has nothing to do with the rating, so a cap style or full brim hat can carry any type and class.

• Cap Style:

  Features a short front brim to shield the eyes from sunlight or rain. Some models allow reverse wear to position the brim over the neck.

• Full Brim Style:

  Includes a brim that wraps around the entire helmet, offering added protection from sun, rain, and debris for the face, neck, and ears.

Not all hard hats are alike. Make sure yours is both the right type and class for the hazards in your work environment. Whether you’re dealing with falling objects, lateral impact risks, or electrical hazards, matching the different hard hat classes to the real risks on your site can make all the difference in safety and compliance.

When to Replace a Hard Hat

A rating only holds while the hat is in good condition. Inspect the shell and suspension before every shift and look for cracks, dents, chalky or faded plastic, and stretched straps. Replace any hat that has taken a hard hit, even if it looks fine. Many manufacturers suggest swapping the suspension about every 12 months and the shell about every five years, but always follow the date guidance printed by the maker. Paint and some solvents can weaken the shell and cancel its electrical rating, so check before adding anything beyond approved stickers.
